BEIBEN TRUCK emerged from the joint venture between MERCEDES BENZ and
NORINCO Group in Inner Mongolia, China. BEIBEN TRUCK produced Mercedes Benz
trucks in China in the late 1990s and early 2000s. As the only manufacturer
to have original BENZ technology, BEIBEN TRUCK is well known for its heavy
duty and reliability.
Why choose BEIBEN Truck
| Axles from Mercedes Benz technology |
| Made for heavy usage applications, all V3 are equipped with double-layer reinforced frames |
| Ease of use, simple and reliable |
V3 - 1834SY |
4 x 2
Gross Combination Weight : 60,000 KG
Engine :
WP12, 336HP, 1615Nm, Euro V
Gearbox : Manual
FULLER FAST 12JS200T
Suspension : Parabolic / Multi Leaf
Front 3 / Rear 9 + 6
V3 - 2043SZ |
4 x 2
Gross Combination Weight : 80,000 KG
Engine :
WP12, 430HP, 2060Nm, Euro V
Gearbox : Manual
ZF 9T2280
Suspension : Parabolic / Multi Leaf
Front 3 / Rear 9 + 7
V3 - 1838S |
4 x 2
Gross Combination Weight : 80,000 KG
Engine :
WP12, 375HP, 1800Nm, Euro V
Gearbox : Manual
FULLER FAST 12JS200T
Suspension : Parabolic / Multi Leaf
Front 3 / Rear 9 + 8
V3 - 2643SZ | 6 x 4
Gross Combination Weight : 120,000 KG
Engine :
WP12, 430HP, 2060Nm, Euro V
Gearbox : Manual
FULLER FAST 12JS200T
Suspension : Multi Leaf
Front 13 / Rear 13 Reinforced
BEIBEN V3 Domestic Truck (Prime Mover) of the Year 2013
BEIBEN V3 Truck won the Domestic Truck (Prime Mover)of the
Year 2013 award. V3 was designed to be efficient,European-like and reliable. With true Mercedes Benz origin, V3 has been exported to many countries including Malaysia, Thailand, Indonesia, Chile,
Peru, Ecuador, South Africa, Myanmar.
BEIBEN V3 trucks are already well received in especially Malaysia and South Africa and Thailand due to its Mercedes lineage with the existing 3836 trucks. Till date, more than 800 units of BEIBEN V3 have been exported to Malaysia.

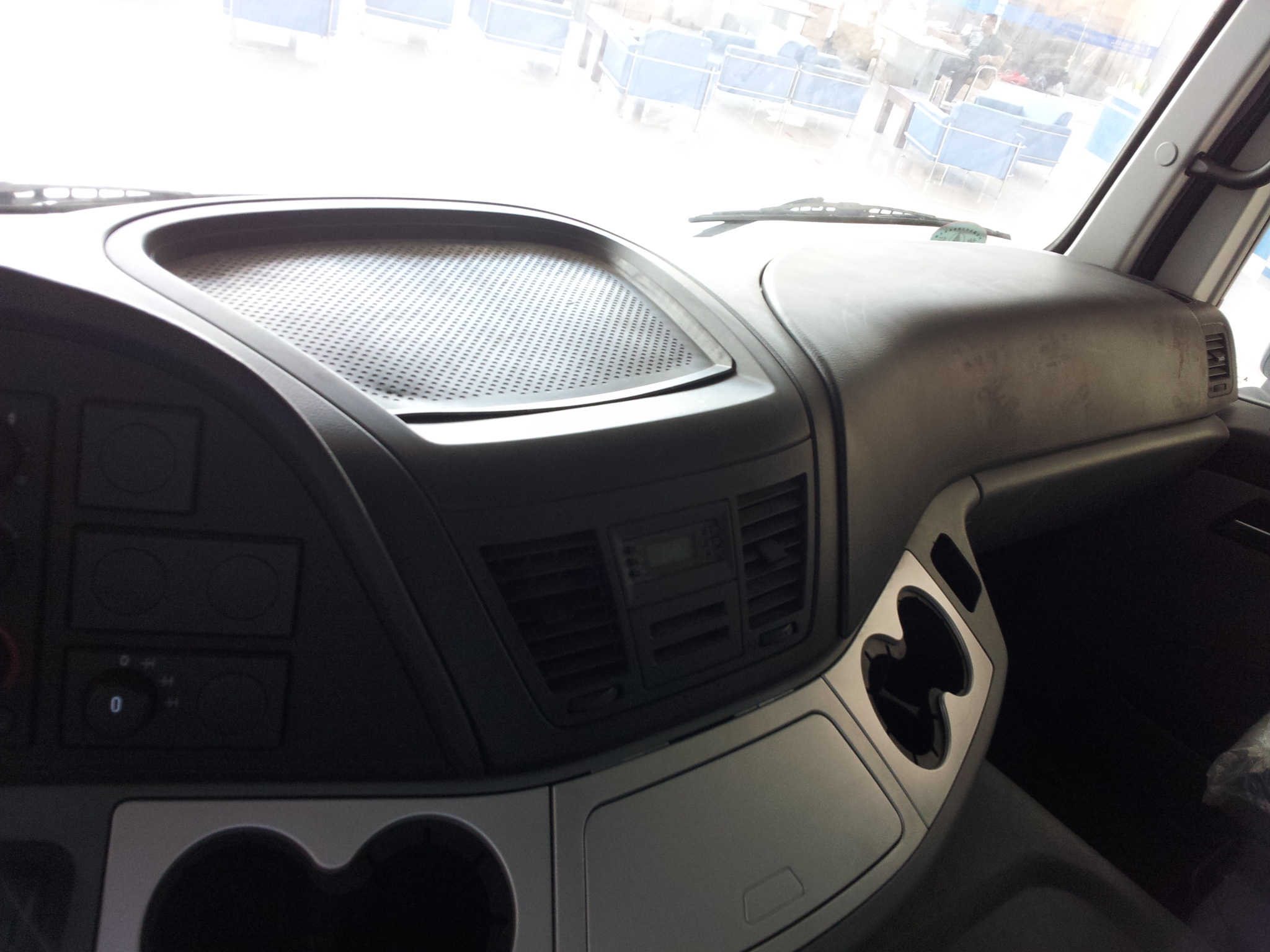

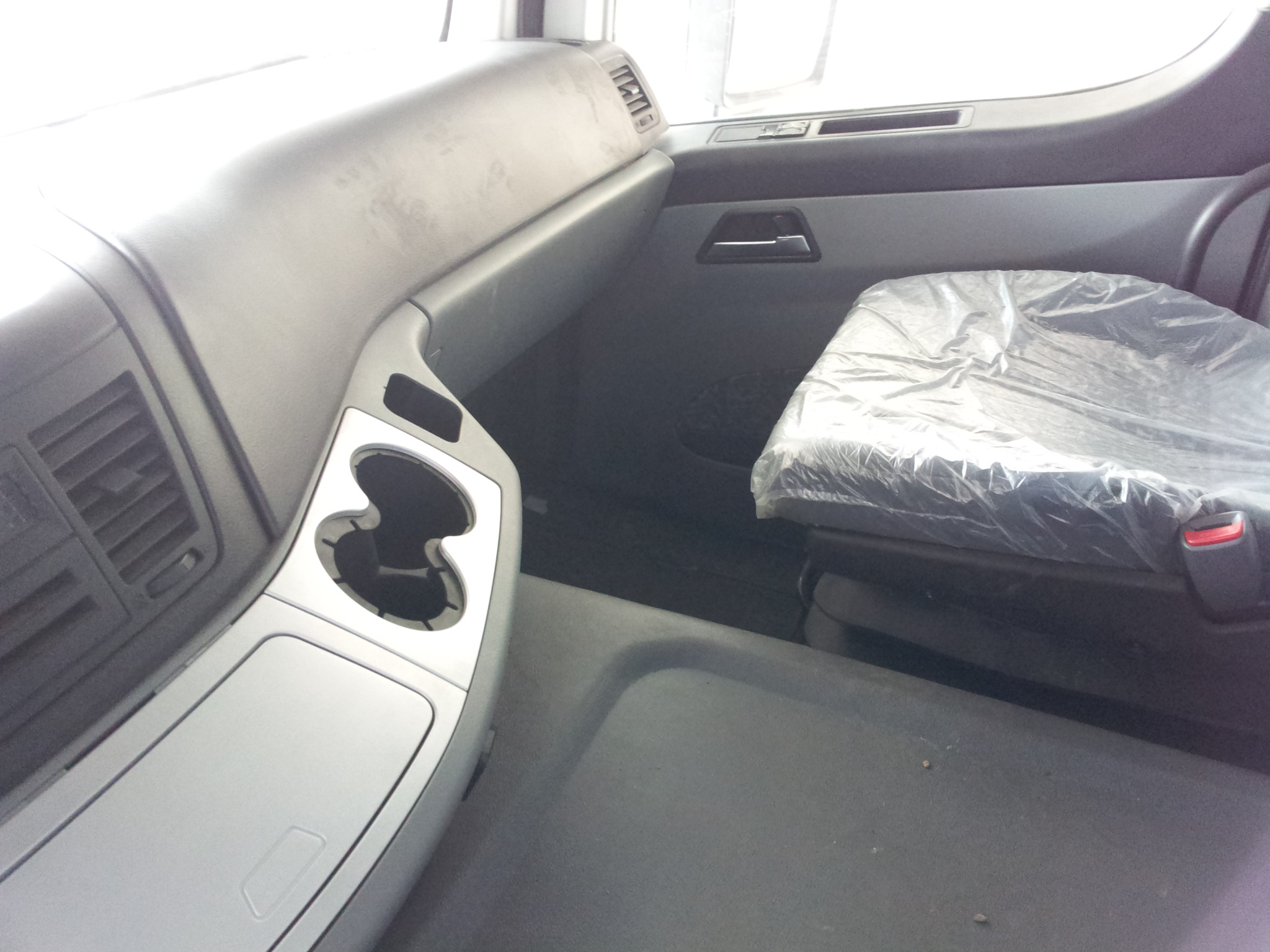

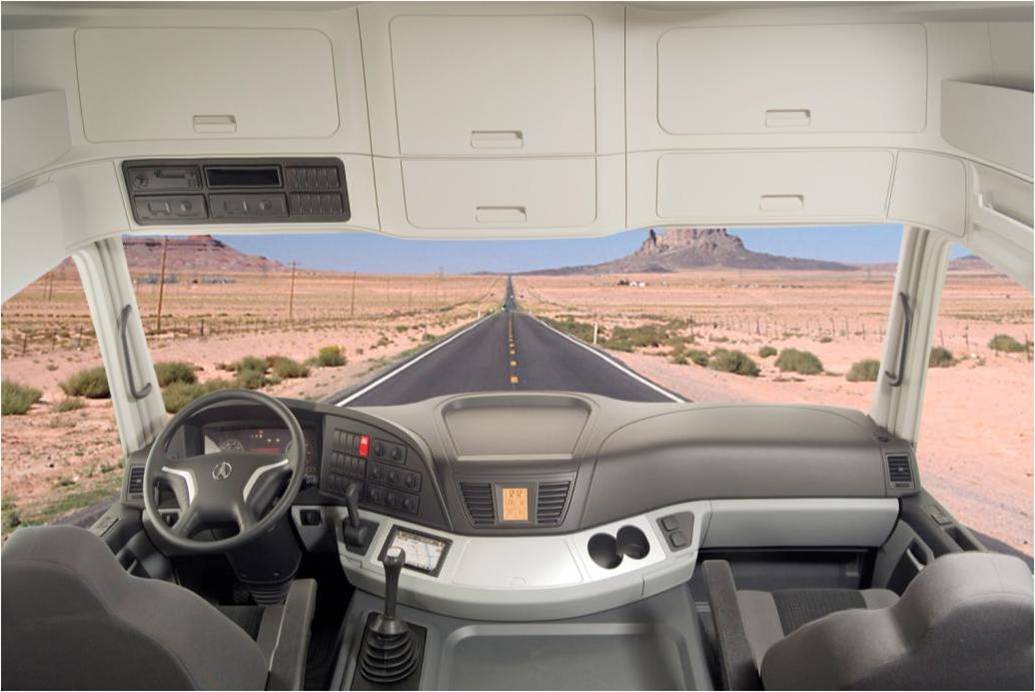

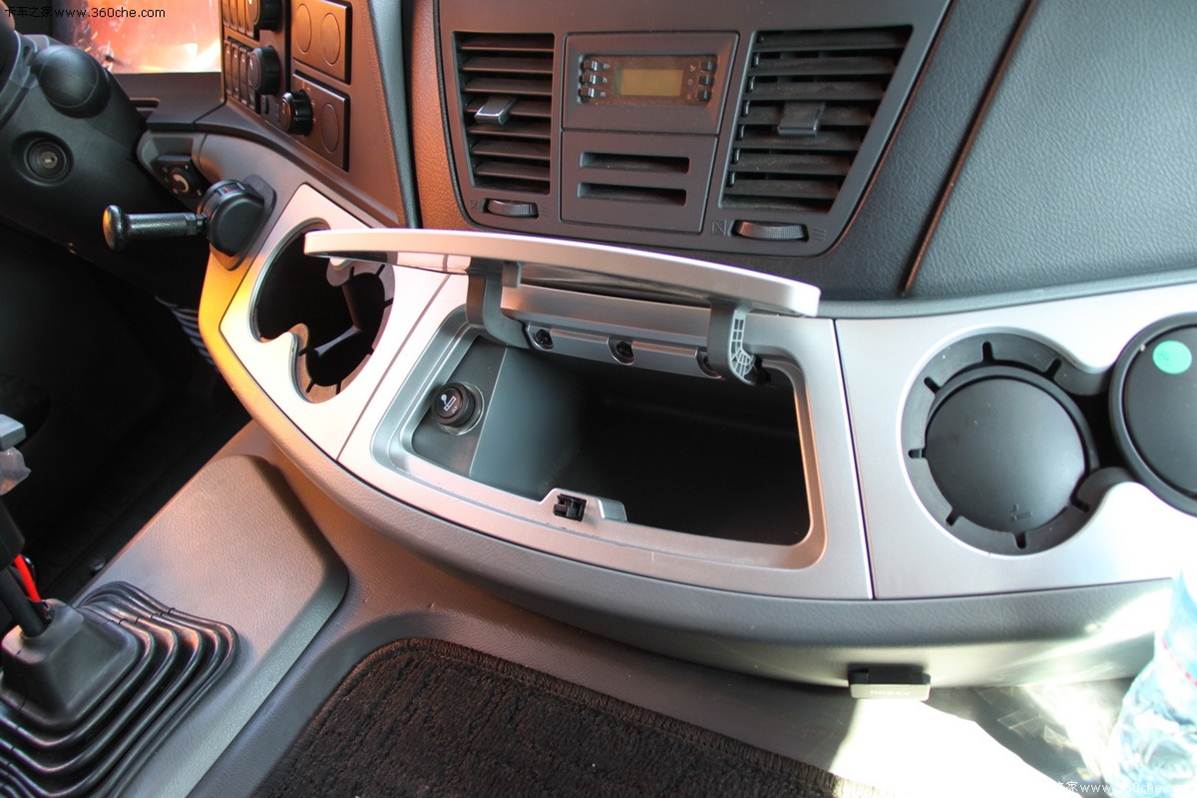

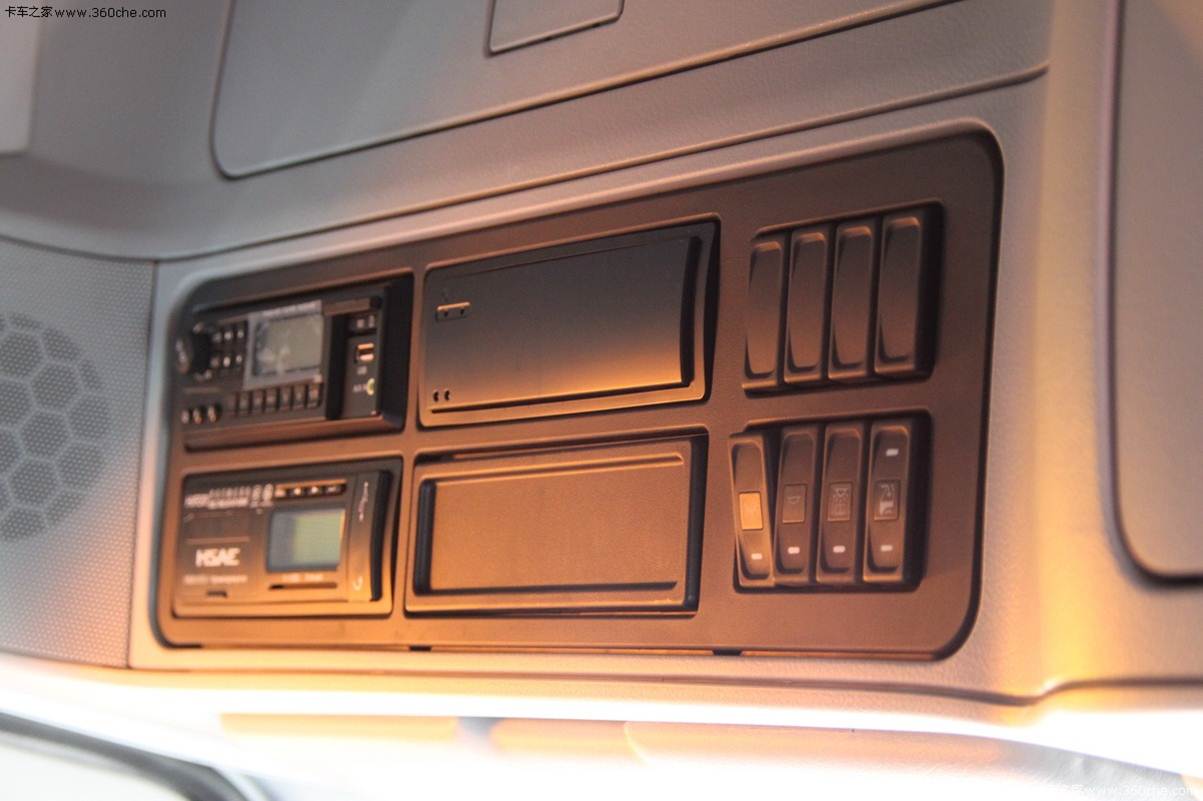

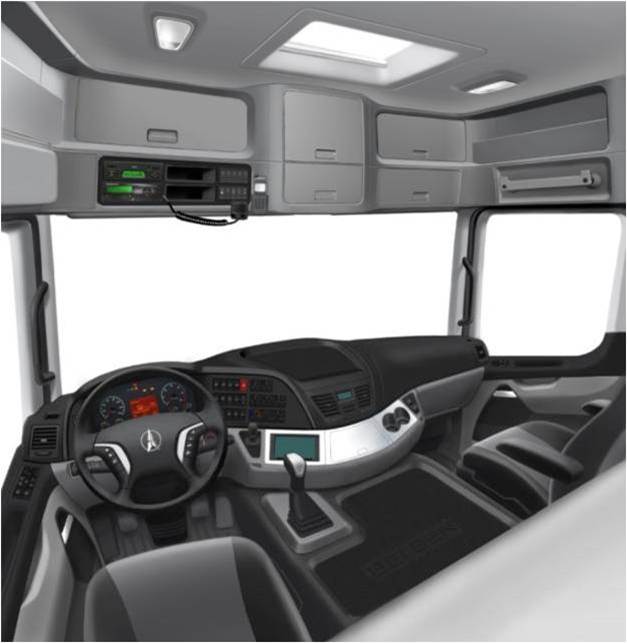

CABIN
The cabin was designed by the same design team of the Mercedes Actros,
and is similar to the Actros. Clean, simplistic and
comfortable with a full sleeper cabin.
Electric cabin tilting is a standard feature to provide ease-of-use for
both the drivers and the technicians.
Remote-Control-Key acces provides convenience for the drivers to
lock/unlock the truck from a distance.
The fully electrical European-style rear view mirrors are adjustable
with wide-angle mirrors and roof mirrors included.

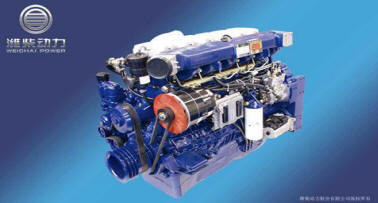

ENGINE
WEICHAI POWER is one of the largest engine manufacturers in the world.
The majority of the heavy duty trucks in China are powered by WEICHAI
engines.
The V3 is powered by a 12L WP12E40 / WP12E50 engine meeting Euro IV and Euro V emission
standards. The WP12 engine is designed with Austria's AVL and utilizes
BOSCH Common Rail as its fuel system, similar to MAN and Cummins.
With horsepower rating from 336hp to 460hp, there is surely an engine
which is suitable for your load requirements.
Weichai engines are used in more than 70% of the heavy trucks in China.
GEARBOX
There are various gearbox options availabe for the BEIBEN V3 trucks
Choose from the 9-speed ZF or efficient 12-speed FAST. For ultimate comfort, there is the option of the FAST F-SHIFT AMT
ZF 9T-2280 Transmission
Max Input Torque :2200Nm
Forward Speeds : 8 + 1 Crawler
Fully Synchronized
The ZF 9T2280 gearbox, jointly developed by ZF and BEIBEN, allows for simplified shifting (Double-H).
ZF Quality Control process ensures high reliability.
Various PTO options are also available.
FAST 12JS Transmission
Max Input Torque :Up to 2400Nm
Forward Speeds : 12
Fully Synchronized
The new FAST 12JS Gearbox was developed with FULLER, providing a reliable and
heavy-duty gearbox especially meant for heavy-duty trucks.
12 Gear ratios provide an ideal gear ratio in any situation, and is the defacto standard transmission in 70% of the heavy trucks in China
FAST F-SHIFT AMT
Max Input Torque :2300Nm
Forward Speeds : 16
AMT - Automated Manual Transmission
The FAST F-SHIFT gearbox provides full automatic gearshifting operation, with an electronically controlled clutch actuator.
WABCO Optidrive provides the control system, similar to the Mercedes
Powershift

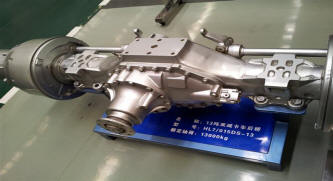

FRONT AND REAR AXLE
BEIBEN Axle factory produces Mercedes Benz licensed front and rear axles
for trucks and buses.
BEIBEN V3 is equipped with the VR-4 front axle (7.5T) and the HL-7 (13T) rear
axle. The 6x4 is equipped with the HD-7 throughdrive axle. Complete interchangability with the Mercedes SK and NG series.
Hub Reduction is a standard feature on the rear axles, allowing higher
ground clearance and less wear on the driveshafts and axle.

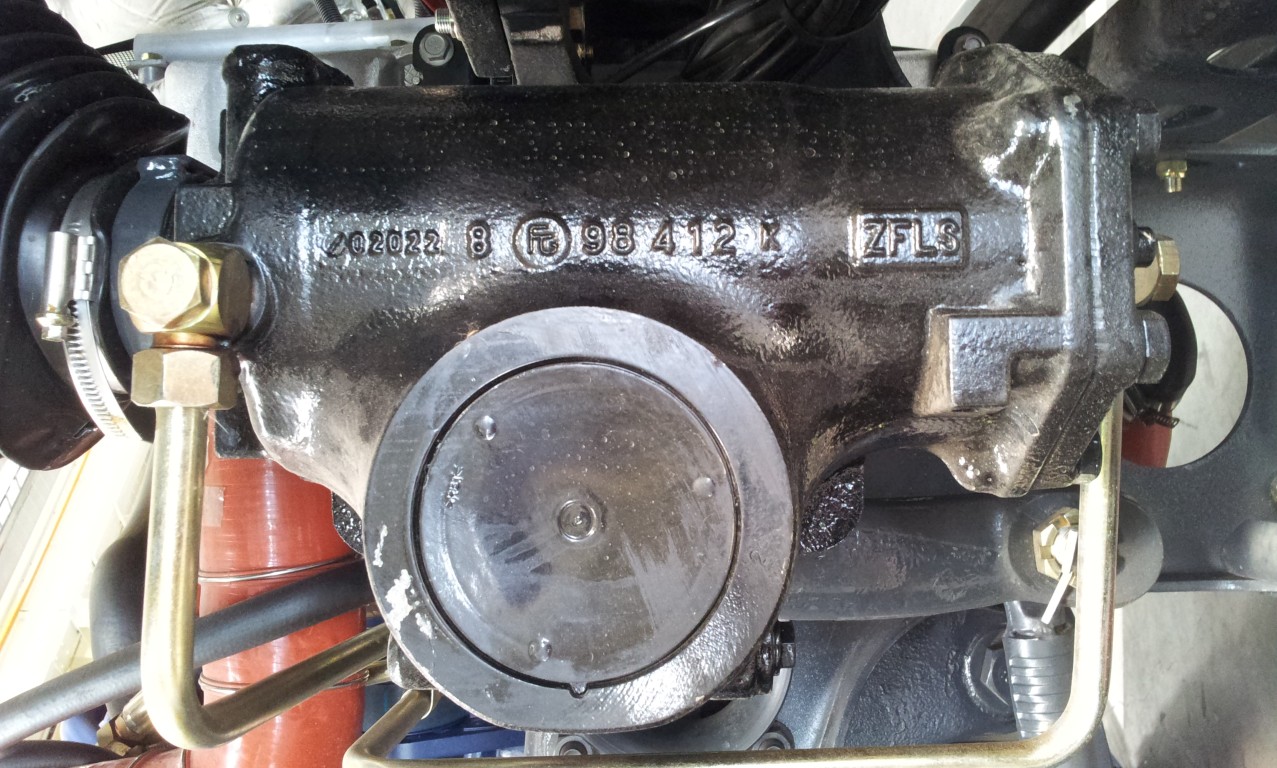

STEERING GEAR
All BEIBEN V3 trucks are equipped with ZF 8098 steering gear. This is
the same steering gear equipped on certain Mercedes, MAN, IVECO, Scania
and Volvo trucks.
ZF Steering gear ensures reliability with ZF's strict Quality Control
assurances.
